Description
Product Information
SKU
832287
Mfr Part#
SYS-531R-I
UPC
618996778027
General Information
Model Number
SYS-531R-I
Color
Black
Expandability
Memory
3.5″ Drive
5.25″ Drive
3.5″ Drive
5.25″ Drive
Case & Motherboard
Computer Case
SuperChassis 731I-404B
Case Orientation
Vertical
Motherboard
Supermicro X13SCL-F Micro-ATX
Chipset
Intel C262
Processor (CPU)
CPU Part Number
CM8071506036601
CPU Model
Intel Xeon 6 Series
Turbo Boost Speed
Up to 4.7GHz
CPU Summary
Intel Xeon 6333P (3.1GHz)
CPU Socket
FCLGA1700
CPUs Installed
1
CPUs Supported
1
CPU Core
Raptor Lake
Cores
Six-Core
CPU Threads
12 Threads
Smart Cache
18MB
Heatsink
Air Cooler
CPU Main Features
Thermal Monitoring Technologies
Enhanced Intel Speedstep Technology
Virtualization Technology for Directed I/O
Intel VT-x with Extended Page Tables (EPT)
Intel Hyper-Threading Technology
Intel Virtualization Technology
Intel Turbo Boost Technology 2.0
Intel SSE4.2
Intel Virtualization Technology with Redirect Protection (VT-rp)
Intel SSE4.1
Intel AVX2
Enhanced Intel Speedstep Technology
Virtualization Technology for Directed I/O
Intel VT-x with Extended Page Tables (EPT)
Intel Hyper-Threading Technology
Intel Virtualization Technology
Intel Turbo Boost Technology 2.0
Intel SSE4.2
Intel Virtualization Technology with Redirect Protection (VT-rp)
Intel SSE4.1
Intel AVX2
Memory (RAM)
Total Memory
16GB
Memory Speed
DDR5-4800
Memory Configuration
1 x 16GB
Memory Slots (Total)
4
Memory Slots (Available)
3
Form Factor
288-pin ECC UDIMM
Maximum Memory Supported
128GB
Hard Drive
HD Interface
8 x SATA 3 6Gb/s
RAID
0,1,5,10
Solid State Drive
SSD Interface
M.2 NVMe Gen4
SSD Capacity
960GB
Graphics/Video
GPU Type
ASPEED AST2600 BMC
Video Memory
Shared
VR Ready
Yes
GPU Interface
Integrated
Communications
LAN
Dual Gigabit LAN
LAN Data Rate Speed
10/100/1000Mbps
Front/Top Panel Ports
USB 3.1
2 x USB 3.2 (Gen 1 Type-A)
Back Panel Ports
USB 3.1
2 x USB 3.2 (Gen 1 Type-A)
USB 2.0
2 x USB 2.0 (Type-A)
Serial 9-pin
1
VGA 15-pin
1
LAN RJ-45
2
Expansion Bays
External 5.25″ Bays (Available)
2
External 5.25″ Bays (Total)
2
Internal 3.5″ Bays (Total)
4
Internal 3.5″ Bays (Available)
4
Expansion Slots
PCIe x16 Slots (Total)
1
PCIe x16 Slots (Available)
1
PCIe x4 Slots (Total)
2
PCIe x4 Slots (Available)
2
M.2
1 Slot, 0 Available
Power
Power Supply
400 Watt 80 PLUS Gold
Security
System Security
Trusted Platform Module 2.0
Physical Device Security
Kensington Lock Slot
Physical Specifications
Width
7.25 in. (184.15 mm)
Depth
16.75 in. (425.45 mm)
Height
14.25 in. (361.95 mm)
Weight
19.00 lbs. (8.62 kg)
Box Dimensions (WxDxH)
11.00 x 21.00 x 20.00 in. (279.40 x 533.40 x 508.00 mm)
Shipping Weight
23.00 lbs. (10.43 kg)
Package Contents
What’s in the Box

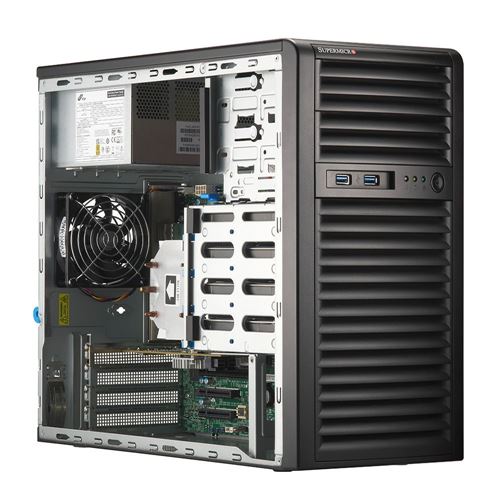

Supermicro SYS-531R-I Mini-Tower Server
Warranty
Parts
3 Years Limited
Labor
3 Years Limited
