Description
Product Information
SKU
962894
Mfr Part#
MS-02U
UPC
4897118835220
General Information
Model Number
MS-02U
Color
Black
Expandability
Memory
M.2 Drive
M.2 Drive
Operating System
Operating System
Windows 11 Pro
Case & Motherboard
Case Orientation
Vertical
Processor (CPU)
CPU Model
Series 2 Core Ultra Processor
Turbo Boost Speed
Up to 5.5GHz
CPU Summary
Intel Core Ultra 9 285HX (2.1GHz)
CPU Socket
FCBGA2114
CPUs Installed
1
CPUs Supported
1
CPU Core
Arrow Lake
Cores
Twenty-Four Core
Performance Cores
8 @ 2.8 GHz Base, 5.5 GHz Turbo
Efficient Cores
16 @ 2.1 GHz Base, 4.6 GHz Turbo
CPU Threads
24 Threads
Smart Cache
36MB
CPU Main Features
Intel vPro Technology
Neural Processor (NPU)
Neural Processing Unit
Intel AI Boost
NPU Performance
Up to 13 TOPS
Memory (RAM)
Total Memory
32GB
Memory Speed
DDR5-4800
Memory Configuration
2 x 16GB
Memory Slots (Total)
4
Memory Slots (Available)
2
Form Factor
262-pin SO-DIMM
Maximum Memory Supported
256GB
Solid State Drive
SSD Interface
NVMe M.2
SSD Capacity
1TB
Graphics/Video
GPU Type
Intel Graphics
Video Memory
Shared
GPU Interface
Integrated
Communications
LAN
Dual 25GbE LAN
WLAN
Wireless LAN WiFi 7 (802.11be)
Bluetooth
Bluetooth 5.4
Wireless Technology
802.11a
802.11b
802.11g
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
WiFi 6 (802.11ax)
WiFi 6E (802.11ax)
WiFi 7 (802.11be)
802.11b
802.11g
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
WiFi 6 (802.11ax)
WiFi 6E (802.11ax)
WiFi 7 (802.11be)
Front/Top Panel Ports
USB 3.1
1 x USB 3.2 (Gen 2 Type-A)
2 x USB 4.0 (Gen 3 Type-C)
2 x USB 4.0 (Gen 3 Type-C)
Audio
1 x Headphone/Microphone Combo
Back Panel Ports
USB 3.1
3 x USB 3.2 (Gen 2 Type-A)
1 x USB 4.0 (Gen 3 Type-C)
1 x USB 4.0 (Gen 3 Type-C)
HDMI
1
Expansion Slots
PCIe x16 Slots (Total)
2
PCIe x4 Slots (Total)
1
M.2
4
Power
Power Supply
350 Watt
Physical Specifications
Width
8.70 in. (220.98 mm)
Depth
8.90 in. (226.06 mm)
Height
3.80 in. (96.52 mm)
Weight
7.61 lbs. (3.45 kg)
Package Contents
What’s in the Box

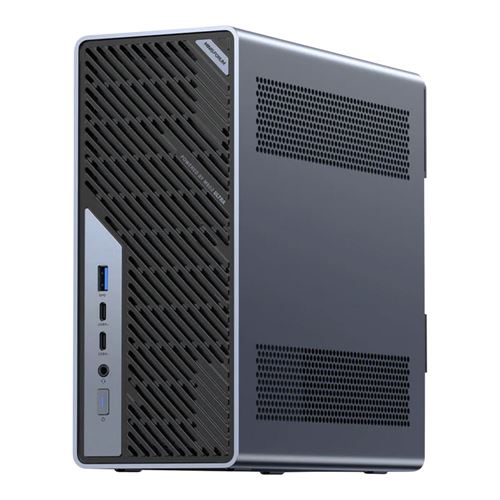

MS-02 Ultra 285HX Mini Workstation
Warranty
Parts
2 Years Limited
Labor
2 Years Limited
