Description
Product Information
SKU
868661
Mfr Part#
EVO-X2
UPC
6972570963761
General Information
Model Number
EVO-X2
Color
Silver
Operating System
Operating System
Windows 11 Pro
Case & Motherboard
Case Orientation
Horizontal
Processor (CPU)
CPU Model
AMD Ryzen AI Max 300 Series Processor
Turbo Boost Speed
Up to 5.1GHz
CPU Summary
AMD Ryzen AI Max+ 395 (3.0GHz)
CPU Socket
FP11
CPUs Installed
1
CPUs Supported
1
CPU Core
Strix Point
Cores
Sixteen-Core
Graphics Cores
40 @ 2900 MHz
CPU Threads
32 Threads
Level 2 Cache
16MB
Level 3 Cache
64MB
CPU Main Features
AMD Enhanced Virus Protection (NX bit)
Neural Processor (NPU)
Neural Processing Unit
AMD Ryzen AI
NPU Performance
Up to 50 TOPS
Memory (RAM)
Total Memory
128GB
Memory Speed
LPDDR5x-8000
Maximum Memory Supported
128GB
Solid State Drive
SSD Interface
PCIe Gen 4 M.2
SSD Capacity
2TB
Display
Display Type
Display Not Included
Webcam
No
Graphics/Video
GPU Type
AMD Radeon 8060S
Video Memory
Shared
GPU Interface
Integrated
Communications
LAN
2.5GbE LAN
LAN Data Rate Speed
10/100/1000/2500Mbps
WLAN
Wireless LAN WiFi 7 (802.11be)
Bluetooth
Bluetooth 5.4
Wireless Technology
802.11a
802.11b
802.11g
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
WiFi 6 (802.11ax)
WiFi 6E (802.11ax)
WiFi 7 (802.11be)
802.11b
802.11g
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
WiFi 6 (802.11ax)
WiFi 6E (802.11ax)
WiFi 7 (802.11be)
Card Reader
Memory Card Reader
Memory Card Reader
Supported Flash Media
Secure Digital
Front/Top Panel Ports
USB 3.1
2 x USB 3.2 (Gen 2 Type-A)
1 x USB 4.0 (Gen 3 Type-C)
1 x USB 4.0 (Gen 3 Type-C)
Audio
1 x Headphone/Microphone Combo
Back Panel Ports
USB 3.1
1 x USB 3.2 (Gen 2 Type-A)
1 x USB 4.0 (Gen 3 Type-C)
1 x USB 4.0 (Gen 3 Type-C)
USB 2.0
2 x USB 2.0 (Type-A)
HDMI
1
DisplayPort
1
LAN RJ-45
1
Audio
1
Power
Power Supply
230 Watt External Adapter
Physical Specifications
Width
7.60 in. (193.04 mm)
Depth
7.32 in. (185.93 mm)
Height
3.03 in. (76.96 mm)
Weight
3.64 lbs. (1.65 kg)
Box Dimensions (WxDxH)
9.84 x 3.94 x 15.35 in. (249.94 x 100.08 x 389.89 mm)
Shipping Weight
7.28 lbs. (3.30 kg)
Package Contents
What’s in the Box

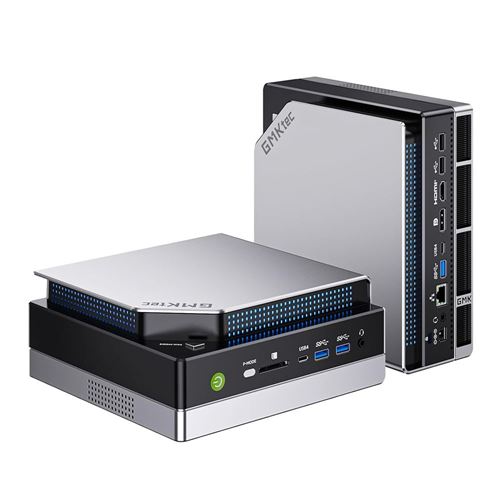

EVO-X2 AI Mini PC
Warranty
Parts
1 Year Limited
Labor
1 Year Limited
