Description
Technical Specifications
General Information

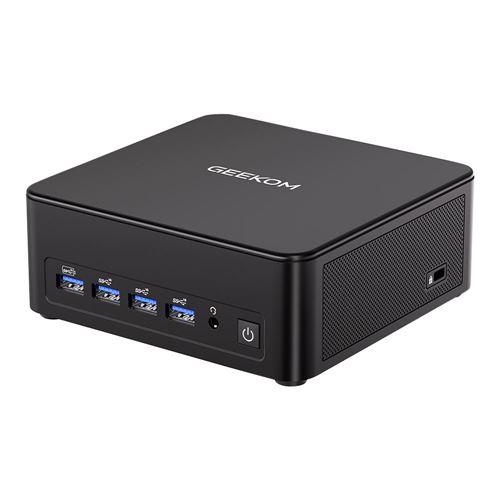

| Model Number | XT14 MAX |
|---|---|
| Color | Black |
Operating System
| Operating System | Windows 11 Pro |
|---|
Case & Motherboard
| Case Orientation | Vertical Horizontal |
|---|
Processor (CPU)
| CPU Model | Series 1 Core Ultra Processor |
|---|---|
| Turbo Boost Speed | Up to 5.1GHz |
| CPU Summary | Intel Core Ultra 9 185H (2.3GHz) |
| CPU Socket | FCBGA2049 |
| CPUs Installed | 1 |
| CPUs Supported | 1 |
| CPU Core | Meteor Lake |
| Cores | Sixteen-Core |
| Performance Cores | 6 @ 2.3 GHz Base, 5.1 GHz Turbo |
| Efficient Cores | 8 @ 1.8 GHz Base, 3.8 GHz Turbo |
| Low Power Efficient Cores | 2 @ 1.0 GHz Base, 2.5 GHz Turbo |
| CPU Threads | 22 Threads |
| Smart Cache | 24MB |
| CPU Main Features | Intel vPro Technology |
Neural Processor (NPU)
| Neural Processing Unit | Intel AI Boost |
|---|---|
| NPU Performance | Up to 11 TOPS |
Memory (RAM)
| Total Memory | 32GB |
|---|---|
| Maximum Memory Supported | 64GB |
Solid State Drive
| SSD Capacity | 512GB |
|---|
Graphics/Video
| GPU Type | Intel Arc Graphics |
|---|---|
| Video Memory | Shared |
| GPU Interface | Integrated |
Communications
| LAN | Dual 2.5GbE LAN |
|---|---|
| LAN Data Rate Speed | 10/100/1000/2500Mbps |
| WLAN | Wireless LAN WiFi 7 (802.11be) |
| Bluetooth | Bluetooth 5.4 |
| Wireless Technology | 802.11a 802.11b 802.11g WiFi 5 (802.11ac) WiFi 4 (802.11n) WiFi 6 (802.11ax) WiFi 6E (802.11ax) WiFi 7 (802.11be) |
Front/Top Panel Ports
| USB 3.1 | 4 x USB 3.2 (Gen 2 Type-A) |
|---|---|
| Audio | 1 x headphone |
Back Panel Ports
| USB 3.1 | 1 x USB 3.2 (Gen 2 Type-A) 2 x USB 4.0 (Gen 3 Type-C) |
|---|---|
| HDMI | 2 |
| LAN RJ-45 | 2 |
Power
| Power Supply | 120 Watt |
|---|
Physical Specifications
| Width | 5.47 in. (138.94 mm) |
|---|---|
| Depth | 5.20 in. (132.08 mm) |
| Height | 1.71 in. (43.43 mm) |
| Weight | 1.83 lbs. (0.83 kg) |
| Box Dimensions (WxDxH) | 9.84 x 5.12 x 6.69 in. (249.94 x 130.05 x 169.93 mm) |
Package Contents
| What’s in the Box | 1x XT14 Max Mini PC, 1x VESA Mount, 1x Power Adapter, 1x HDMI Cable, 1x User Guide, 1x Thank You Card |
|---|
Warranty
| Parts | 3 Years Limited |
|---|---|
| Labor | 3 Years Limited |
Reviews
There are no reviews yet.
