Description
Product Information
SKU
917138
Mfr Part#
GEEKOM A6
UPC
810190722336
General Information
Model Number

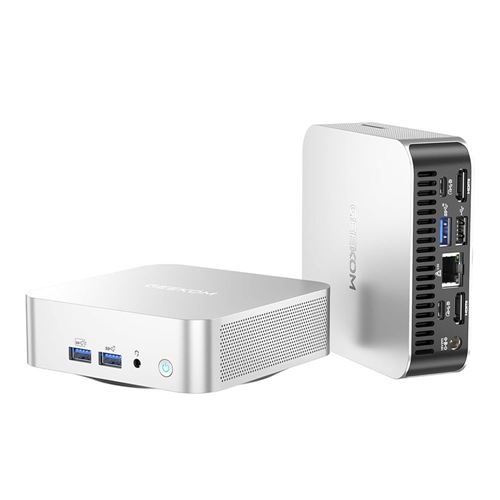

GEEKOM A6
Expandability
Memory
Operating System
Operating System
Windows 11 Pro
Case & Motherboard
Case Orientation
Vertical
Horizontal
Horizontal
Processor (CPU)
CPU Model
AMD Ryzen 6000 Series Processor
Turbo Boost Speed
Up to 4.7GHz
CPU Summary
AMD Ryzen 7 6800H (3.2GHz)
CPU Socket
FP7
CPUs Installed
1
CPUs Supported
1
CPU Core
Rembrandt
Cores
Eight-Core
Graphics Cores
12 @ 2200 MHz
CPU Threads
16 Threads
Level 2 Cache
4MB
Level 3 Cache
16MB
CPU Main Features
AMD Enhanced Virus Protection (NX bit)
Memory (RAM)
Total Memory
32GB
Memory Speed
DDR5-4800
Memory Configuration
2 x 16GB
Maximum Memory Supported
64GB
Solid State Drive
SSD Interface
M.2 NVMe Gen4
SSD Capacity
1TB
Graphics/Video
GPU Type
AMD Radeon 680M
Video Memory
Shared
GPU Interface
Integrated
Audio
Audio System
HDA CODEC
Communications
LAN
2.5GbE LAN
LAN Data Rate Speed
10/100/1000/2500Mbps
WLAN
Wireless LAN WiFi 6E (802.11ax)
Bluetooth
Bluetooth 5.2
Wireless Technology
802.11a
802.11b
802.11g
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
WiFi 6 (802.11ax)
WiFi 6E (802.11ax)
802.11b
802.11g
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
WiFi 6 (802.11ax)
WiFi 6E (802.11ax)
Card Reader
Memory Card Reader
Memory Card Reader
Supported Flash Media
Secure Digital
Front/Top Panel Ports
USB 3.1
2 x USB 3.2 (Gen 2 Type-A)
Audio
1 x headphone
Back Panel Ports
USB 3.1
1 x USB 3.2 (Gen 2 Type-C)
1 x USB 3.2 (Gen 2 Type-A)
1 x USB 4.0 (Gen 3 Type-C)
1 x USB 3.2 (Gen 2 Type-A)
1 x USB 4.0 (Gen 3 Type-C)
USB 2.0
1 x USB 2.0 (Type-A)
HDMI
2
LAN RJ-45
1
Power
Power Supply
120 Watt External Adapter
Physical Specifications
Width
4.43 in. (112.52 mm)
Depth
4.43 in. (112.52 mm)
Height
1.46 in. (37.08 mm)
Box Dimensions (WxDxH)
9.84 x 5.12 x 6.69 in. (249.94 x 130.05 x 169.93 mm)
Package Contents
What’s in the Box
A6 Mini PC, Thank You Card User Guide, HDMI Cable, Power Adapter, VESA Mount
Warranty
Parts
3 Years Limited
Labor
3 Years Limited
