Description
Product Information
SKU
817551
Mfr Part#
90PF05R2-M007R0
UPC
197105885707
General Information
Model Number
90PF05R2-M007R0
Color
Gray
Expandability
Memory
Operating System
Operating System
Windows 11 Home
Case & Motherboard
Case Orientation
Vertical
Processor (CPU)
CPU Model
13th Generation Core i5 Processor
Turbo Boost Speed
Up to 4.6GHz
CPU Summary
Intel Core i5 13420H (1.5GHz)
CPU Socket
FCBGA1744
CPUs Installed
1
CPUs Supported
1
CPU Core
Raptor Lake
Cores
Eight-Core
CPU Threads
12 Threads
Smart Cache
12MB
Heatsink
Air Cooler
Memory (RAM)
Total Memory
8GB
Maximum Memory Supported
64GB
Solid State Drive
SSD Interface
PCIe NVMe Gen 4 M.2
SSD Capacity
512GB
Display
Display Type
Display Not Included
Webcam
No
Graphics/Video
GPU Type
Intel UHD Graphics
Video Memory
Shared
GPU Interface
Integrated
Audio
Audio System
High Definition Audio
Audio Channels
7.1
Communications
LAN
Gigabit LAN
LAN Data Rate Speed
10/100/1000Mbps
WLAN
1×1 Wi-Fi 6 802.11ax
Bluetooth
Bluetooth 5.4
Wireless Technology
802.11a
802.11b
802.11g
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
WiFi 6 (802.11ax)
802.11b
802.11g
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
WiFi 6 (802.11ax)
Front/Top Panel Ports
USB 3.1
2 x USB 3.2 (Gen 1 Type-A)
1 x USB 3.2 (Gen 1 Type-C)
1 x USB 3.2 (Gen 1 Type-C)
Audio
1 x Headphone/Microphone Combo
Back Panel Ports
USB 2.0
4 x USB 2.0 (Type-A)
HDMI
1
DisplayPort
1
LAN RJ-45
1
Audio
3
Expansion Bays
Internal 3.5″ Bays (Total)
1
Expansion Slots
PCIe x16 Slots (Total)
1
M.2
1
Keyboard
Keyboard
USB
Mouse
Mouse
Optical
Connection Type
USB
Power
Power Supply
180 Watt
Environmental Specifications
RoHS Compliant
Yes
Energy Star Compliant
Yes
EPEAT Compliant
Yes
Security
Physical Device Security
Kensington Lock Slot
Physical Specifications
Width
6.10 in. (154.94 mm)
Depth
11.65 in. (295.91 mm)
Height
13.66 in. (346.96 mm)
Weight
13.23 lbs. (6.00 kg)
Package Contents
What’s in the Box

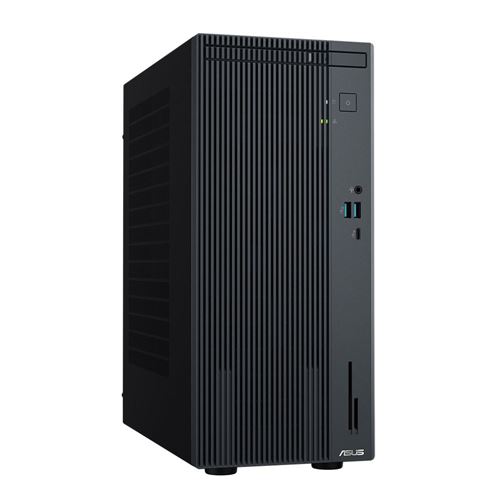

V500 Mini Tower V500MV-MS503 Desktop Computer, USB Keyboard, USB Mouse
Preloaded Software
McAfee 30-Day Trial
Warranty
Parts
1 Year Limited
Labor
1 Year Limited
