Description
Product Information
SKU
728907
Mfr Part#
AS-3015A-I II
UPC
618996778119
General Information
Model Number
AS-3015A-I II
Color
Black
Expandability
3.5″ Drive
M.2 Drive
5.25″ Drive
M.2 Drive
5.25″ Drive
Operating System
Operating System
Windows Server 2022 Essentials
Case & Motherboard
Computer Case
Supermicro CSE-731i-668B
Case Orientation
Vertical
Motherboard
Supermicro H13SAE-MF Micro-ATX
Chipset
AMD B650
Processor (CPU)
CPU Part Number
100-000001477
CPU Model
EPYC 4004 Series
Turbo Boost Speed
Up to 5.4GHz
CPU Summary
AMD EPYC 4364P (4.5GHz)
CPU Socket
AM5
CPUs Installed
1
CPUs Supported
1
CPU Core
Raphael
Cores
Eight-Core
CPU Threads
16 Threads
Smart Cache
32MB
Heatsink
Air Cooler
CPU Main Features
AMD Infinity Architecture
Memory (RAM)
Total Memory
32GB
Memory Speed
DDR5-4800
Memory Configuration
1 x 32GB
Memory Slots (Total)
4
Memory Slots (Available)
3
Form Factor
288-pin UDIMM
Maximum Memory Supported
192GB
Hard Drive
HD Interface
4 x SATA 3 6Gb/s
RAID
0,1,10
Solid State Drive
SSD Interface
M.2 NVMe Gen4
SSD Capacity
960GB
Graphics/Video
GPU Type
AMD Radeon Graphics
Video Memory
Shared
GPU Interface
Integrated
Audio
Audio System
Realtek ALC888S HD
Audio Channels
5.1
Communications
LAN
Gigabit LAN
LAN Data Rate Speed
10/100/1000Mbps
Front/Top Panel Ports
USB 3.1
2 x USB 3.2 (Gen 1 Type-A)
Audio
1 x headphone
1 x microphone
1 x microphone
Back Panel Ports
USB 3.1
2 x USB 3.2 (Gen 2 Type-C)
1 x USB 3.2 (Gen 2×2 Type-C)
3 x USB 3.2 (Gen 2 Type-A)
1 x USB 3.2 (Gen 2×2 Type-C)
3 x USB 3.2 (Gen 2 Type-A)
Serial 9-pin
1
VGA 15-pin
1
HDMI
1
DisplayPort
1
LAN RJ-45
2
Audio
5
Digital Audio
1
Expansion Bays
External 5.25″ Bays (Available)
2
External 5.25″ Bays (Total)
2
Internal 3.5″ Bays (Total)
4
Internal 3.5″ Bays (Available)
4
Expansion Slots
PCIe x16 Slots (Total)
2
PCIe x16 Slots (Available)
2
PCIe x4 Slots (Total)
1
PCIe x4 Slots (Available)
1
M.2
2 Slots, 1 Available
Power
Power Range
100-240Vac / 50-60Hz
Power Supply
668 Watt 80 PLUS Platinum
Combined +12V Rating
648 Watts (54A)
Security
Physical Device Security
Kensington Lock Slot
System Security
Trusted Platform Module 2.0
Physical Specifications
Width
7.25 in. (184.15 mm)
Depth
16.75 in. (425.45 mm)
Height
14.25 in. (361.95 mm)
Box Dimensions (WxDxH)
11.00 x 21.00 x 20.00 in. (279.40 x 533.40 x 508.00 mm)
Shipping Weight
22.00 lbs. (9.98 kg)
Package Contents
What’s in the Box

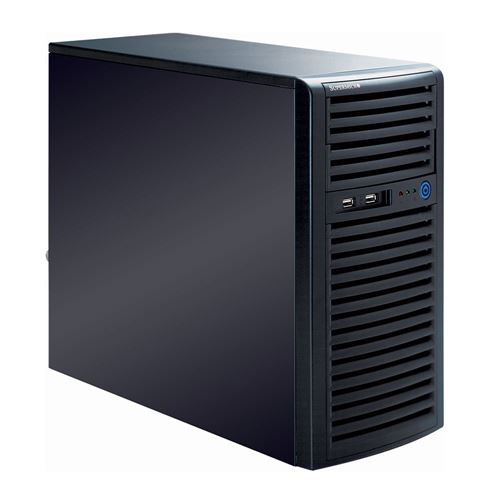

AS-3015A-I II Mini-Tower Server
Warranty
Parts
3 Years Limited
Labor
3 Years Limited
