Description
Product Information
SKU
010298
Mfr Part#
RAIDER16MXHXB4
UPC
824142455760
General Information
Platform
Notebook PC
Series
Raider
Model Number
9S7-265111-088
Color – Lid
Core Black
Motherboard
North Bridge Chipset
Intel HM870
Operating System
Operating System
Windows 11 Home
Processor (CPU)
CPU Brand
Intel
CPU Model
Series 2 Core Ultra Processor
CPU Type
Core Ultra 9
CPU Speed
290HX Plus (1.8GHz)
Turbo Boost Speed
Up to 5.5GHz
CPU Core
Arrow Lake
Cores
Twenty-Four-Core
Performance Cores
8 @ 2.7 GHz Base, 5.5 GHz Turbo
Efficient Cores
16 @ 1.8 GHz Base, 4.7 GHz Turbo
CPU Threads
24 Threads
Smart Cache
36MB
CPU Main Features
Turbo Boost Max Technology 3.0
Neural Processor (NPU)
Neural Processing Unit
Intel AI Boost
NPU Performance
Up to 13 TOPS
Memory (RAM)
Total Memory
32GB
Memory Type
DDR5
Memory Speed
DDR5-5600
Form Factor
262-pin SO-DIMM
Memory Slots (Total)
2
Memory Slots (Available)
0
Maximum Memory Supported
128GB
Memory Configuration
2 x 16GB
Solid State Drive
SSD Interface
PCIe Gen4x4 NVMe M.2
SSD Capacity
1TB
SSD Configuration
1 x 1TB
Display
Screen Size
16″
Display Type
QHD+ OLED
Resolution
2560×1600
Refresh Rate
240Hz
Front Camera
Yes
Front Camera Resolution
1080p
Front Camera Features
Full HD
IR
IR
Touch Screen
No
Graphics/Video
Graphics Card Features
Super Resolution
Ray Reconstruction
Frame Generation
DLAA
Multi Frame Generation
DLSS 4.5
Dynamic Multi Frame Generation
Ray Reconstruction
Frame Generation
DLAA
Multi Frame Generation
DLSS 4.5
Dynamic Multi Frame Generation
GPU Type
NVIDIA GeForce RTX 5070 Ti
Graphics/Video Memory
12GB GDDR7
VR Ready
Yes
Audio
Speakers
2 x 2W Speakers + 2 x 2W Subwoofer
Built-in Microphone
Array Microphone
Communications
Connectivity
WiFi+LAN
LAN
2.5Gb LAN
LAN Data Transfer Rate
10/100/1000/2500Mbps
WLAN
Killer Wireless LAN WiFi 7 BE1750
Wireless Technology
802.11b
802.11g
802.11a
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
WiFi 6 (802.11ax)
WiFi 6E (802.11ax)
WiFi 7 (802.11be)
802.11g
802.11a
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
WiFi 6 (802.11ax)
WiFi 6E (802.11ax)
WiFi 7 (802.11be)
Bluetooth
Bluetooth 5.4
Card Reader
Media Supported
Secure Digital
Expansion
Expandability
Memory
Ports & Connectors
Audio Ports
3.5mm Combo x1
USB 3.1
3 x USB 3.2 (Gen 2 Type-A)
Thunderbolt Ports
Thunderbolt 4 x2
HDMI
1
LAN RJ-45
1
Keyboard & Mouse
Keyboard
Per-key RGB
Mouse Type
Multi-Touch Touchpad
Power
Power Supply
400 Watt AC Adapter
Battery
4-Cell Li-ion
Environmental Specifications
Energy Star Compliant
Yes
Physical Specifications
Width
14.29 in. (362.97 mm)
Depth
10.62 in. (269.75 mm)
Height
1.14 in. (28.96 mm)
Weight
5.73 lbs. (2.60 kg)
Box Dimensions (WxDxH)
12.83 x 17.33 x 4.25 in. (325.88 x 440.18 x 107.95 mm)
What’s in the Box
What’s in the Box

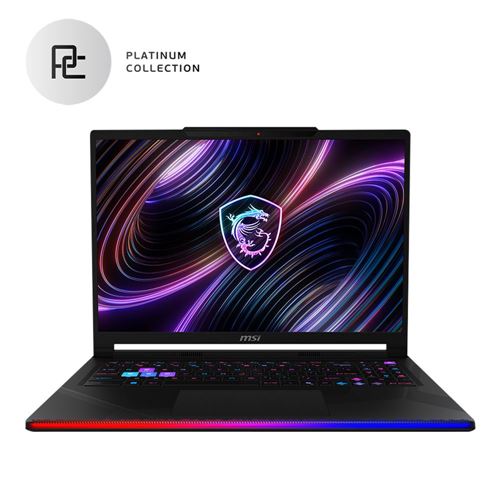

Raider 16 Max HX B2WH-004US OLED 16″ Gaming Laptop Computer Platinum Collection, Power Cord
Warranty
Parts
1 Year Limited
Labor
1 Year Limited
