Description
Product Information
SKU
816918
Mfr Part#
83F5006FUS
UPC
198157311824
General Information
Platform
Notebook PC
Series
Legion
Model Number
83F5006FUS
Color – Lid
Eclipse Black
Operating System
Operating System
Windows 11 Pro
Processor (CPU)
CPU Brand
Intel
CPU Model
Series 2 Core Ultra Processor
CPU Type
Core Ultra 9
CPU Speed
275HX (2.1GHz)
Turbo Boost Speed
Up to 5.4GHz
CPU Core
Arrow Lake
Cores
Twenty-Four-Core
Performance Cores
8 @ 2.7 GHz Base, 5.4 GHz Turbo
Efficient Cores
16 @ 2.1 GHz Base, 4.6 GHz Turbo
CPU Threads
24 Threads
Level 2 Cache
40MB
CPU Main Features
Turbo Boost Max Technology 3.0
Neural Processor (NPU)
Neural Processing Unit
Intel AI Boost
NPU Performance
Up to 13 TOPS
Memory (RAM)
Total Memory
32GB
Memory Type
DDR5
Memory Speed
DDR5-6400
Form Factor
262-pin SO-DIMM
Memory Slots (Total)
2
Memory Slots (Available)
0
Maximum Memory Supported
64GB
Memory Configuration
2 x 16GB
Solid State Drive
SSD Interface
PCIe 4.0 x4 NVMe M.2
SSD Capacity
2TB
SSD Configuration
2 x 1TB
Display
Screen Size
16″
Display Type
WQXGA OLED Low Blue Light Display
Display Finish
Glossy
Resolution
2560×1600
Refresh Rate
240Hz
Front Camera
Yes
Front Camera Resolution
5.0 Megapixel
Front Camera Features
E-Shutter
Touch Screen
No
Brightness
500 nits
Graphics/Video
Graphics Card Features
OpenGL 4.6
DirectX 12 Ultimate
Super Resolution
Ray Reconstruction
Frame Generation
DLAA
DLSS 4
Multi Frame Generation
Vulkan 1.4
DirectX 12 Ultimate
Super Resolution
Ray Reconstruction
Frame Generation
DLAA
DLSS 4
Multi Frame Generation
Vulkan 1.4
GPU Type
NVIDIA GeForce RTX 5070 Ti
Graphics/Video Memory
12GB GDDR7
VR Ready
Yes
TGP (Total Graphics Power)
300W
Audio
Audio System
High Definition Audio
Speakers
2 x 2W Speakers + 2 x 2W Subwoofer
Built-in Microphone
Dual Array Microphone
Communications
Connectivity
WiFi+LAN
LAN
2.5Gb LAN
LAN Data Transfer Rate
10/100/1000/2500Mbps
WLAN
2×2 Wireless LAN Wifi 7 (802.11be)
Wireless Technology
802.11b
802.11g
802.11a
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
WiFi 6 (802.11ax)
WiFi 6E (802.11ax)
WiFi 7 (802.11be)
802.11g
802.11a
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
WiFi 6 (802.11ax)
WiFi 6E (802.11ax)
WiFi 7 (802.11be)
Bluetooth
Bluetooth 5.4
Ports & Connectors
Audio Ports
3.5mm Combo x1
Thunderbolt Ports
Thunderbolt 4 x1
USB 3.1
2 x USB 3.2 (Gen 1 Type-A)
1 x USB 3.2 (Gen 2 Type-A)
1 x USB 3.2 (Gen 2 Type-C)
1 x USB 3.2 (Gen 2 Type-A)
1 x USB 3.2 (Gen 2 Type-C)
HDMI
1
LAN RJ-45
1
Security
System Security
Trusted Platform Module 2.0
Keyboard & Mouse
Keyboard Features
Backlit Keyboard
Keyboard
RGB per Key Keyboard
Mouse Type
Buttonless Mylar Surface Touchpad
Power
Power Supply
400 Watt AC Adapter
Battery
99.9Wh
Environmental Specifications
RoHS Compliant
Yes
Physical Specifications
Width
14.35 in. (364.49 mm)
Depth
10.86 in. (275.84 mm)
Height
0.86 in. (21.84 mm) – 1.05 in. (26.67 mm)
Weight
5.67 lbs. (2.57 kg)
Box Dimensions (WxDxH)
13.94 x 21.85 x 3.27 in. (354.08 x 554.99 x 83.06 mm)
What’s in the Box
What’s in the Box

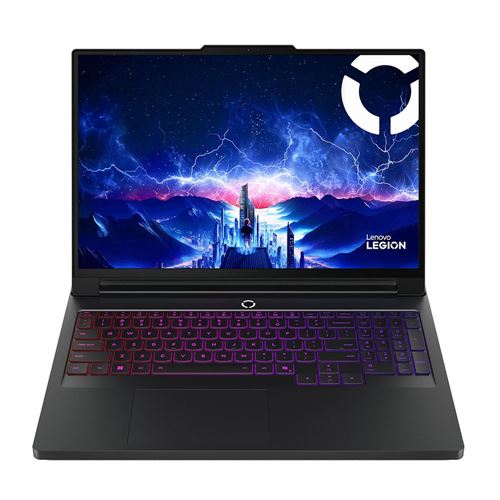

Legion Pro 7 16IAX10H OLED 16″ Gaming Laptop Computer, Power Cord
Preloaded Software
Office Trial + Lenovo AI Now
Warranty
Parts
1 Year Limited
Labor
1 Year Limited
