Description
Product Information
SKU
899732
Mfr Part#
83M0004JUS
UPC
199271660317
General Information
Platform
Notebook PC
Series
Legion
Model Number
83M0004JUS
Color – Lid
Eclipse Black
Operating System
Operating System
Windows 11 Home
Processor (CPU)
CPU Brand
AMD
CPU Model
AMD Ryzen 200 Series Processor
CPU Type
Ryzen 7
CPU Speed
260 (3.8GHz)
Turbo Boost Speed
Up to 5.1GHz
CPU Core
Hawk Point
Cores
Eight-Core
Graphics Cores
12 @ 2700 MHz
CPU Threads
16 Threads
Level 2 Cache
8MB
Level 3 Cache
16MB
CPU Main Features
AMD Enhanced Virus Protection (NX bit)
Neural Processor (NPU)
Neural Processing Unit
AMD Ryzen AI
NPU Performance
Up to 16 TOPS
Memory (RAM)
Total Memory
16GB
Memory Type
DDR5
Memory Speed
DDR5-5600
Form Factor
262-pin SO-DIMM
Memory Slots (Total)
2
Memory Slots (Available)
1
Maximum Memory Supported
32GB
Memory Configuration
1 x 16GB
Solid State Drive
SSD Interface
PCIe 4.0 x4 NVMe M.2
SSD Capacity
512GB
SSD Configuration
1 x 512GB
Display
Screen Size
15.3″
Display Type
WUXGA IPS Anti-Glare
Display Finish
Matte
Resolution
1920×1200
Refresh Rate
165Hz
Front Camera
Yes
Front Camera Resolution
720p
Front Camera Features
HD
E-Shutter
E-Shutter
Touch Screen
No
Brightness
300 nits
Graphics/Video
Graphics Card Features
OpenGL 4.6
DirectX 12 Ultimate
Super Resolution
Ray Reconstruction
Frame Generation
DLAA
DLSS 4
Multi Frame Generation
Vulkan 1.4
DirectX 12 Ultimate
Super Resolution
Ray Reconstruction
Frame Generation
DLAA
DLSS 4
Multi Frame Generation
Vulkan 1.4
GPU Type
NVIDIA GeForce RTX 5060
Graphics/Video Memory
8GB GDDR7
VR Ready
Yes
Audio
Audio System
High Definition Audio
Speakers
2 x 2W Stereo Speakers
Built-in Microphone
Dual Array Microphone
Communications
Connectivity
WiFi+LAN
LAN
Gigabit LAN
LAN Data Transfer Rate
10/100/1000Mbps
WLAN
2×2 Wireless LAN Wifi 6 (802.11ax)
Wireless Technology
802.11b
802.11g
802.11a
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
WiFi 6 (802.11ax)
802.11g
802.11a
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
WiFi 6 (802.11ax)
Bluetooth
Bluetooth 5.2
Expansion
Expandability
Memory
Ports & Connectors
Audio Ports
3.5mm Combo x1
USB 3.1
3 x USB 3.2 (Gen 1 Type-A)
1 x USB 3.2 (Gen 2 Type-C)
1 x USB 4.0 (Gen 3 Type-C)
1 x USB 3.2 (Gen 2 Type-C)
1 x USB 4.0 (Gen 3 Type-C)
HDMI
1
LAN RJ-45
1
Security
System Security
Trusted Platform Module 2.0
Keyboard & Mouse
Keyboard Features
Backlit Keyboard
Keyboard
English
Mouse Type
Buttonless Mylar Surface Touchpad
Power
Power Supply
245 Watt AC Adapter
Battery
60Wh
Environmental Specifications
RoHS Compliant
Yes
Energy Star Compliant
Yes
Regulatory Approvals
EPEAT Gold
Physical Specifications
Width
13.58 in. (344.93 mm)
Depth
10.05 in. (255.27 mm)
Height
0.89 in. (22.61 mm) – 0.94 in. (23.88 mm)
Weight
4.62 lbs. (2.10 kg)
Box Dimensions (WxDxH)
20.39 x 12.95 x 3.46 in. (517.91 x 328.93 x 87.88 mm)
Shipping Weight
8.23 lbs. (3.73 kg)
What’s in the Box
What’s in the Box

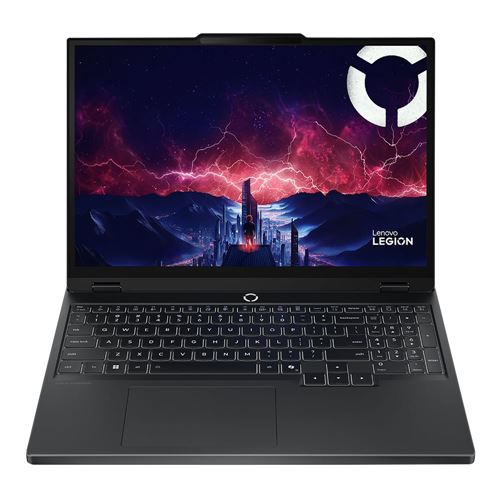

Legion 5 15AHP10 15.3″ Gaming Laptop Computer, User Guide, 245W Slim Tip Charger
Preloaded Software
Microsoft Office 365 30-Day Trial
McAfee LiveSafe 30-Day Trial
McAfee LiveSafe 30-Day Trial
Warranty
Parts
1 Year Limited
Labor
1 Year Limited
