Description
Product Information
SKU
982264
Mfr Part#
CK1C9AA#ABA
UPC
199764082695
General Information
Series
Omen
Model Number
CK1C9AA#ABA
Color
Shadow Black
Expandability
M.2 Drive
Operating System
Operating System
Windows 11 Pro
Case & Motherboard
Case Orientation
Vertical
Processor (CPU)
CPU Model
AMD Ryzen 9000 Series Processor
Turbo Boost Speed
Up to 5.2GHz
CPU Summary
AMD Ryzen 7 9800X3D (4.7GHz)
CPU Socket
AM5
CPUs Installed
1
CPUs Supported
1
CPU Core
Granite Ridge AM5
Cores
Eight-Core
Graphics Cores
2 @ 2200 MHz
CPU Threads
16 Threads
Level 2 Cache
8MB
Level 3 Cache
96MB
Liquid Cooling
360mm
CPU Main Features
AMD EXPO Technology
AMD Ryzen Technologies
AMD Ryzen Technologies
Memory (RAM)
Total Memory
64GB
Memory Speed
DDR5-6000
Solid State Drive
SSD Interface
PCIe NVMe Gen 4 M.2
SSD Capacity
2TB
Display
Display Type
Display Not Included
Webcam
No
Graphics/Video
Graphics Card Features
Super Resolution
DLAA
Ray Reconstruction
Frame Generation
Multi Frame Generation
DLSS 4.5
Dynamic Multi Frame Generation
DLAA
Ray Reconstruction
Frame Generation
Multi Frame Generation
DLSS 4.5
Dynamic Multi Frame Generation
GPU Type
NVIDIA GeForce RTX 5090
Video Memory
32GB GDDR7
VR Ready
Yes
GPU Interface
PCIe Gen 5
Audio
Audio Channels
5.1
Communications
LAN
2.5GbE LAN
LAN Data Rate Speed
10/100/1000/2500Mbps
WLAN
2×2 Wi-Fi 7 802.11be
Bluetooth
Bluetooth 5.4
Wireless Technology
802.11a
802.11b
802.11g
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
WiFi 6 (802.11ax)
WiFi 6E (802.11ax)
WiFi 7 (802.11be)
802.11b
802.11g
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
WiFi 6 (802.11ax)
WiFi 6E (802.11ax)
WiFi 7 (802.11be)
Front/Top Panel Ports
USB 3.1
2 x USB 3.2 (Gen 1 Type-A)
1 x USB 3.2 (Gen 2 Type-C)
1 x USB 3.2 (Gen 2 Type-C)
Audio
1 x Headphone/Microphone Combo
Back Panel Ports
USB 3.1
2 x USB 3.2 (Gen 1 Type-A)
2 x USB 3.2 (Gen 2 Type-C)
2 x USB 3.2 (Gen 2 Type-C)
USB 2.0
4 x USB 2.0 (Type-A)
HDMI
1
DisplayPort
3
LAN RJ-45
1
Audio
1
Expansion Slots
PCIe x16 Slots (Total)
1
PCIe x4 Slots (Total)
1
M.2
3
Keyboard
Keyboard
Sold Separately
Mouse
Mouse
Sold Separately
Power
Power Supply
1200 Watt
Security
Physical Device Security
Chassis Side Cover Lock
Physical Specifications
Width
8.03 in. (203.96 mm)
Depth
18.50 in. (469.90 mm)
Height
21.85 in. (554.99 mm)
Weight
49.82 lbs. (22.60 kg)
Box Dimensions (WxDxH)
12.91 x 23.31 x 26.46 in. (327.91 x 592.08 x 672.09 mm)
Shipping Weight
55.56 lbs. (25.20 kg)
Package Contents
What’s in the Box

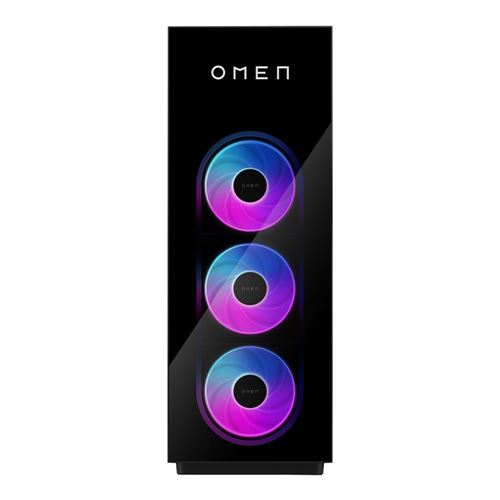

OMEN MAX 45L GT23-0090 Gaming PC
Preloaded Software
McAfee Premium Individual 30-Day Trial
Warranty
Parts
1 Year Limited
Labor
1 Year Limited
