Description
Product Information
SKU
842773
Mfr Part#
90NR0LR1-M00AN0
UPC
197105972681
General Information
Platform
Notebook PC
Series
ROG
Model Number
90NR0LR1-M00AN0
Color – Lid
Eclipse Gray
Motherboard
North Bridge Chipset
Mobile Intel HM870 Express
Operating System
Operating System
Windows 11 Home
Processor (CPU)
CPU Brand
Intel
CPU Model
Series 2 Core Ultra Processor
CPU Type
Core Ultra 9
CPU Speed
275HX (2.1GHz)
Turbo Boost Speed
Up to 5.4GHz
CPU Core
Arrow Lake
Cores
Twenty-Four-Core
Performance Cores
8 @ 2.7 GHz Base, 5.4 GHz Turbo
Efficient Cores
16 @ 2.1 GHz Base, 4.6 GHz Turbo
CPU Threads
24 Threads
Level 2 Cache
40MB
Smart Cache
36MB
CPU Main Features
Intel vPro Technology
Neural Processor (NPU)
Neural Processing Unit
Intel AI Boost
NPU Performance
Up to 13 TOPS
Memory (RAM)
Total Memory
32GB
Memory Type
DDR5
Memory Speed
DDR5-5600
Form Factor
262-pin SO-DIMM
Memory Slots (Total)
2
Memory Slots (Available)
0
Maximum Memory Supported
64GB
Memory Configuration
2 x 16GB
Solid State Drive
SSD Interface
PCIe 4.0 NVMe M.2
SSD Capacity
2TB
SSD Configuration
1 x 2TB
Display
Screen Size
16″
Display Type
2.5K ROG Nebula Display
Display Finish
Matte
Resolution
2560×1600
Refresh Rate
240Hz
Widescreen
Yes
Front Camera
Yes
Front Camera Resolution
1080p
Front Camera Features
Full HD
IR
IR
Touch Screen
No
Brightness
500 nits
Graphics/Video
GPU Type
NVIDIA GeForce RTX 5070 Ti
Graphics/Video Memory
12GB GDDR7
VR Ready
Yes
Audio
Audio System
DOLBY Atmos
Speakers
2-Speaker System with Smart Amplifier Technology
Built-in Microphone
Array Microphone
Communications
Connectivity
WiFi+LAN
LAN
2.5Gb LAN
LAN Data Transfer Rate
10/100/1000/2500Mbps
WLAN
2×2 Wireless LAN Wifi 7 (802.11be)
Wireless Technology
802.11b
802.11g
802.11a
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
WiFi 6 (802.11ax)
WiFi 6E (802.11ax)
WiFi 7 (802.11be)
802.11g
802.11a
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
WiFi 6 (802.11ax)
WiFi 6E (802.11ax)
WiFi 7 (802.11be)
Bluetooth
Bluetooth 5.4
Expansion
Expandability
Memory
Ports & Connectors
Audio Ports
3.5mm Combo x1
Thunderbolt Ports
Thunderbolt 5 x2
USB 3.1
3 x USB 3.2 (Gen 2 Type-A)
HDMI
1
LAN RJ-45
1
Security
System Security
Trusted Platform Module
User Password
BIOS Administrator Password
User Password
BIOS Administrator Password
Keyboard & Mouse
Keyboard Features
Backlit Keyboard
Copilot Key
Copilot Key
Keyboard
Chiclet Keyboard Per-Key RGB
Mouse Type
Touchpad
Power
Power Supply
280 Watt AC Adapter
Battery
4-Cell Li-ion
Physical Specifications
Width
13.94 in. (354.08 mm)
Depth
10.55 in. (267.97 mm)
Height
0.90 in. (22.86 mm) – 1.21 in. (30.73 mm)
Weight
6.02 lbs. (2.73 kg)
What’s in the Box
What’s in the Box

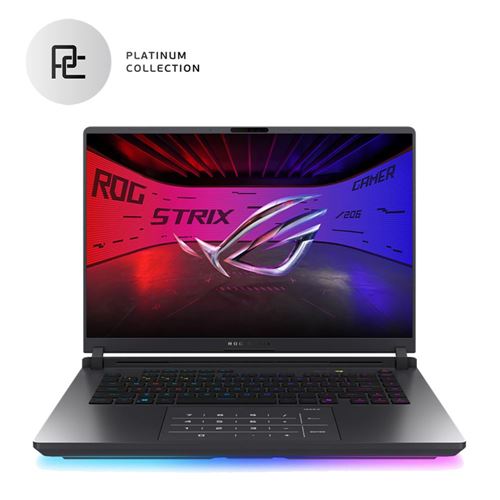

ROG Strix G16 G615LR-MS97 16″ Gaming Laptop Computer Platinum Collection, Power Cord
Preloaded Software
McAfee 30-Day Trial
Warranty
Parts
1 Year Limited
Labor
1 Year Limited
