Description
Product Information
SKU
893347
Mfr Part#
90T2000RUS
UPC
196801557819
General Information
Series
IdeaCentre
Model Number
90T2000RUS
Color
Cloud Grey
Expandability
Memory
3.5″ Drive
M.2 Drive
3.5″ Drive
M.2 Drive
Operating System
Operating System
Windows 11 Home
Case & Motherboard
Case Orientation
Vertical
Chipset
Intel B660
Processor (CPU)
CPU Model
12th Generation Core i7 Processor
Turbo Boost Speed
Up to 4.8GHz
CPU Summary
Intel Core i7 12700 (1.6GHz)
CPU Socket
FCLGA1700
CPUs Installed
1
CPUs Supported
1
CPU Core
Alder Lake
Cores
Twelve-Core
Performance Cores
8 @ 2.1 GHz Base, 4.8 GHz Turbo
Efficient Cores
4 @ 1.6 GHz Base, 3.6 GHz Turbo
CPU Threads
20 Threads
Smart Cache
25MB
Heatsink
1x Front + 1x Rear
CPU Main Features
Intel vPro Technology
Memory (RAM)
Total Memory
16GB
Memory Speed
DDR4-3200
Memory Configuration
2 x 8GB
Memory Slots (Total)
2
Memory Slots (Available)
0
Form Factor
288-pin UDIMM
Maximum Memory Supported
32GB
Solid State Drive
SSD Interface
PCIe 3.0 x4 NVMe M.2
SSD Capacity
512GB
Multimedia Drives
Optical Drives Included
1
Optical Drive
DVDRW
Optical Drive Specs
9.0mm DVDRW Drive
Display
Display Type
Display Not Included
Webcam
No
Graphics/Video
GPU Type
Intel UHD Graphics 770
Video Memory
Shared
GPU Interface
Integrated
Audio
Audio System
High Definition Audio
Communications
LAN
Gigabit LAN
LAN Data Rate Speed
10/100/1000Mbps
WLAN
2×2 Wi-Fi 6 802.11ax
Bluetooth
Bluetooth 5.1
Wireless Technology
802.11a
802.11b
802.11g
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
WiFi 6 (802.11ax)
802.11b
802.11g
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
WiFi 6 (802.11ax)
Front/Top Panel Ports
USB 3.1
1 x USB 3.2 (Gen 1 Type-C)
1 x USB 3.2 (Gen 2 Type-A)
1 x USB 3.2 (Gen 1 Type-A)
1 x USB 3.2 (Gen 2 Type-A)
1 x USB 3.2 (Gen 1 Type-A)
Audio
1 x Headphone/Microphone Combo
Back Panel Ports
USB 2.0
4 x USB 2.0 (Type-A)
VGA 15-pin
1
HDMI
1
LAN RJ-45
1
Audio
1
Expansion Bays
Internal 3.5″ Bays (Total)
1
Expansion Slots
PCIe x16 Slots (Total)
1
PCIe x1 Slots (Total)
1
M.2
2
Keyboard
Keyboard
USB Calliope
Mouse
Mouse
USB Calliope
Power
Power Supply
260 Watt
Environmental Specifications
RoHS Compliant
Yes
Energy Star Compliant
Yes
Security
System Security
Trusted Platform Module 2.0
Physical Specifications
Width
5.71 in. (145.03 mm)
Depth
11.33 in. (287.78 mm)
Height
13.39 in. (340.11 mm)
Weight
11.90 lbs. (5.40 kg)
Package Contents
What’s in the Box

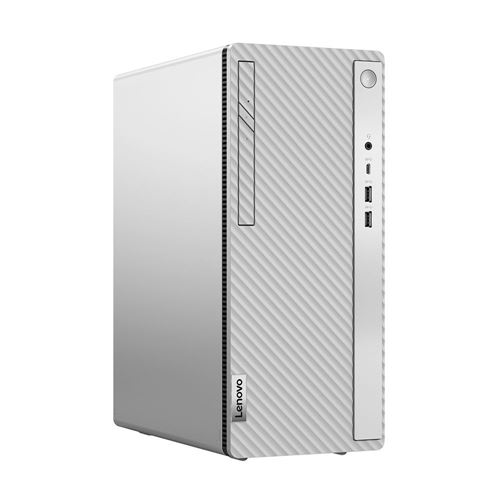

IdeaCentre 5 14IAB7 Desktop Computer
Warranty
Parts
1 Year Limited
Labor
1 Year Limited
