Description
Product Information
SKU
848671
Mfr Part#
B9KK6UA#ABA
UPC
198990742427
General Information
Platform
Notebook PC
Series
OmniBook
Model Number
B9KK6UA#ABA
Color – Lid
Glacier Silver Aluminum
Color – Base
Glacier Silver Aluminum
Color – Keyboard
Soft Grey
Operating System
Operating System
Windows 11 Home
Processor (CPU)
CPU Brand
Intel
CPU Model
Series 2 Core Ultra Processor
CPU Type
Core Ultra 7
CPU Speed
255H (1.5GHz)
Turbo Boost Speed
Up to 5.1GHz
CPU Core
Arrow Lake
Cores
Sixteen-Core
Performance Cores
6 @ 2.0 GHz Base, 5.1 GHz Turbo
Low Power Efficient Cores
2 @ 700 MHz Base, 2.5 GHz Turbo
Efficient Cores
8 @ 1.5 GHz Base, 4.4 GHz Turbo
CPU Threads
16 Threads
Smart Cache
24MB
CPU Main Features
Intel vPro Technology
Neural Processor (NPU)
Neural Processing Unit
Intel AI Boost
NPU Performance
Up to 13 TOPS
Memory (RAM)
Total Memory
32GB
Memory Type
DDR5
Memory Speed
DDR5-5600
Form Factor
262-pin SO-DIMM
Memory Slots (Total)
2
Memory Slots (Available)
0
Memory Configuration
2 x 16GB
Solid State Drive
SSD Interface
PCIe Gen4 NVMe M.2
SSD Capacity
1TB
SSD Configuration
1 x 1TB
Display
Screen Size
16″
Display Type
2K OLED
Resolution
2048×1280
Refresh Rate
120Hz
Front Camera
Yes
Front Camera Resolution
5.0 Megapixel
Front Camera Features
IR
Temporal Noise Reduction
Temporal Noise Reduction
Touch Screen
Yes
Brightness
400 nits
Graphics/Video
GPU Type
NVIDIA GeForce RTX 4050
Graphics/Video Memory
6GB GDDR6
Audio
Audio System
DTS X Ultra
Speakers
Dual Speakers
Built-in Microphone
Dual Array Digital Microphones
Communications
Connectivity
WiFi Only
WLAN
2×2 Wireless LAN Wifi 6E 802.11ax
Wireless Technology
802.11b
802.11g
802.11a
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
WiFi 6 (802.11ax)
WiFi 6E (802.11ax)
802.11g
802.11a
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
WiFi 6 (802.11ax)
WiFi 6E (802.11ax)
Bluetooth
Bluetooth 5.3
Ports & Connectors
Audio Ports
3.5mm Combo x1
USB 3.1
1 x USB 3.2 (Gen 2 Type-A)
1 x USB 3.2 (Gen 2 Type-C)
1 x USB 3.2 (Gen 1 Type-A)
1 x USB 3.2 (Gen 2 Type-C)
1 x USB 3.2 (Gen 1 Type-A)
USB Sleep & Charge
Yes
HDMI
1
Keyboard & Mouse
Keyboard Features
Backlit Keyboard
Numeric Keypad
Numeric Keypad
Keyboard
Full-size
Mouse Type
Imagepad
Power
Power Supply
100W USB-C Power Adapter
Battery
4-Cell Li-ion Polymer
Battery Life
Up to 18 Hours, 30 Minutes (Stated battery Life is estimated based on manufacturers engineering testing for a new battery. Actual performance will vary based on notebook settings, environmental conditions, and usage. Battery capacity decreases over time and use.)
Environmental Specifications
Energy Star Compliant
Yes
Regulatory Approvals
EPEAT Gold
Physical Specifications
Width
14.09 in. (357.89 mm)
Depth
10.03 in. (254.76 mm)
Height
0.59 in. (14.99 mm)
Weight
4.30 lbs. (1.95 kg)
Box Dimensions (WxDxH)
3.15 x 16.65 x 11.93 in. (80.01 x 422.91 x 303.02 mm)
What’s in the Box
What’s in the Box

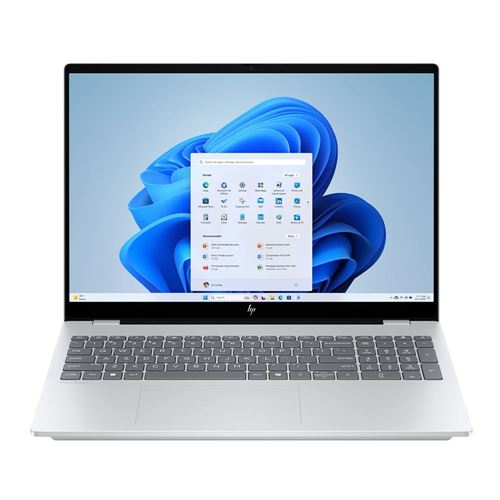

OmniBook 7 AI 16-ay0002nr OLED 16″ Laptop Computer
Warranty
Parts
1 Year Limited
Labor
1 Year Limited
