Description
Product Information
SKU
982272
Mfr Part#
CJ9Z8AA#ABA
UPC
199764086204
General Information
Series
Omen
Model Number
CJ9Z8AA#ABA
Color
Ceramic White
Operating System
Operating System
Windows 11 Home
Case & Motherboard
Case Orientation
Vertical
Processor (CPU)
CPU Model
AMD Ryzen 8000 Series Processor
Turbo Boost Speed
Up to 5GHz
CPU Summary
AMD Ryzen 7 8700F (4.1GHz)
CPU Socket
AM5
CPUs Installed
1
CPUs Supported
1
CPU Core
Phoenix
Cores
Eight-Core
CPU Threads
16 Threads
Level 2 Cache
8MB
Level 3 Cache
16MB
Heatsink
1 x 120 mm RGB Front Fan + 1 x 90 mm Rear Fan + 92 mm 2-Heatpipe RGB Air Cooler
CPU Main Features
AMD Enhanced Virus Protection (NX bit)
Neural Processor (NPU)
Neural Processing Unit
AMD Ryzen AI
NPU Performance
Up to 16 TOPS
Memory (RAM)
Total Memory
16GB
Memory Speed
DDR5-5200
Solid State Drive
SSD Interface
PCIe NVMe Gen 4 M.2
SSD Capacity
1TB
Display
Display Type
Display Not Included
Webcam
No
Graphics/Video
Graphics Card Features
Virtual Super Resolution
Radeon Boost
Radeon Boost
GPU Type
AMD Radeon RX 9060 XT
Video Memory
16GB GDDR6
Audio
Audio Channels
5.1
Communications
LAN
2.5GbE LAN
LAN Data Rate Speed
10/100/1000/2500Mbps
WLAN
2×2 Wi-Fi 6E 802.11ax
Bluetooth
Bluetooth 5.3
Wireless Technology
802.11a
802.11b
802.11g
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
WiFi 6 (802.11ax)
WiFi 6E (802.11ax)
802.11b
802.11g
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
WiFi 6 (802.11ax)
WiFi 6E (802.11ax)
Front/Top Panel Ports
USB 3.1
2 x USB 3.2 (Gen 1 Type-A)
1 x USB 3.2 (Gen 1 Type-C)
1 x USB 3.2 (Gen 2 Type-C)
2 x USB 3.2 (Gen 2 Type-A)
1 x USB 3.2 (Gen 1 Type-C)
1 x USB 3.2 (Gen 2 Type-C)
2 x USB 3.2 (Gen 2 Type-A)
Audio
1 x Headphone/Microphone Combo
Back Panel Ports
USB 2.0
4 x USB 2.0 (Type-A)
HDMI
1
DisplayPort
2
LAN RJ-45
1
Expansion Slots
PCIe x16 Slots (Total)
1
PCIe x16 Slots (Available)
0
PCIe x1 Slots (Total)
1
PCIe x1 Slots (Available)
1
M.2
3 Slots, 1 Available
Keyboard
Keyboard
USB
Mouse
Mouse
USB
Power
Power Supply
500 Watt 80 PLUS Platinum
Security
Physical Device Security
Kensington Lock Slot
Padlock
Padlock
Physical Specifications
Width
6.10 in. (154.94 mm)
Depth
13.26 in. (336.80 mm)
Height
12.12 in. (307.85 mm)
Weight
12.76 lbs. (5.79 kg)
Box Dimensions (WxDxH)
15.75 x 19.65 x 11.30 in. (400.05 x 499.11 x 287.02 mm)
Shipping Weight
21.63 lbs. (9.81 kg)
Package Contents
What’s in the Box

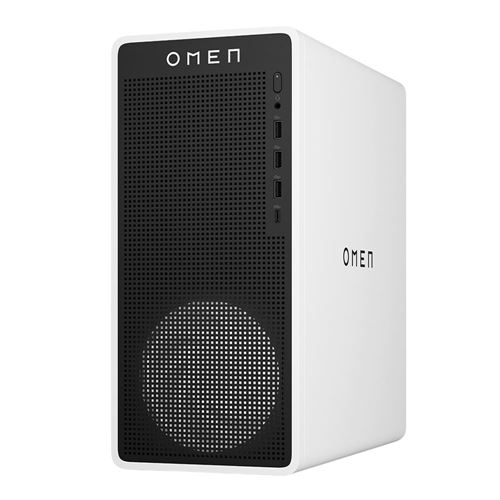

OMEN 16L TG03-0230 Gaming PC, USB Keyboard and Mouse Combo
Preloaded Software
McAfee Premium Individual 30-Day Trial
Warranty
Parts
1 Year Limited
Labor
1 Year Limited
