Description
Product Information
SKU
775452
Mfr Part#
DT.BLRAA.001
UPC
195133246910
General Information
Series
Aspire
Model Number
DT.BLRAA.001
Color
Black
Expandability
Memory
3.5″ Drive
5.25″ Drive
3.5″ Drive
5.25″ Drive
Operating System
Operating System
Windows 11 Home
Case & Motherboard
Case Orientation
Vertical
Processor (CPU)
CPU Model
14th Generation Core i5 Processor
Turbo Boost Speed
Up to 4.7GHz
CPU Summary
Intel Core i5 14400 (1.8GHz)
CPU Socket
FCLGA1700
CPUs Installed
1
CPUs Supported
1
CPU Core
Raptor Lake
Cores
Ten-Core
Performance Cores
6 @ 2.5 GHz Base, 4.7 GHz Turbo
Efficient Cores
4 @ 1.8 GHz Base, 3.5 GHz Turbo
CPU Threads
16 Threads
Smart Cache
20MB
CPU Main Features
Intel Turbo Boost Technology 2.0
Memory (RAM)
Total Memory
8GB
Memory Speed
DDR5-4800
Memory Configuration
1 x 8GB
Memory Slots (Total)
2
Memory Slots (Available)
1
Maximum Memory Supported
32GB
Solid State Drive
SSD Interface
PCIe NVMe Gen 4 M.2
SSD Capacity
512GB
Display
Display Type
Display Not Included
Webcam
No
Graphics/Video
GPU Type
Intel UHD Graphics 730
Video Memory
Shared
GPU Interface
Integrated
Audio
Audio System
High Definition Audio
Audio Channels
5.1
Communications
LAN
Gigabit LAN
LAN Data Rate Speed
10/100/1000Mbps
WLAN
2×2 Intel Wi-Fi 6E AX211 (Gig+)
Bluetooth
Bluetooth 5.3
Wireless Technology
802.11a
802.11b
802.11g
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
WiFi 6 (802.11ax)
WiFi 6E (802.11ax)
802.11b
802.11g
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
WiFi 6 (802.11ax)
WiFi 6E (802.11ax)
Card Reader
Memory Card Reader
Memory Card Reader
Supported Flash Media
Secure Digital
Front/Top Panel Ports
USB 3.1
1 x USB 3.2 (Gen 1 Type-C)
1 x USB 3.2 (Gen 1 Type-A)
1 x USB 3.2 (Gen 1 Type-A)
Audio
1 x microphone
1 x Headphone/Microphone Combo
1 x Headphone/Microphone Combo
Back Panel Ports
USB 3.1
1 x USB 3.2 (Gen 1 Type-A)
USB 2.0
4 x USB 2.0 (Type-A)
HDMI
2
LAN RJ-45
1
Audio
3
Expansion Bays
External 5.25″ Bays (Available)
1
External 5.25″ Bays (Total)
1
Internal 3.5″ Bays (Total)
1
Internal 3.5″ Bays (Available)
1
Expansion Slots
PCIe x16 Slots (Total)
1
PCIe x16 Slots (Available)
1
PCIe x1 Slots (Total)
1
PCIe x1 Slots (Available)
1
M.2
2 Slots, 0 Available
Keyboard
Keyboard
USB
Mouse
Mouse
Optical
Connection Type
USB
Power
Power Supply
300 Watt
Physical Specifications
Width
6.42 in. (163.07 mm)
Depth
13.78 in. (350.01 mm)
Height
13.39 in. (340.11 mm)
Weight
17.20 lbs. (7.80 kg)
Box Dimensions (WxDxH)
19.45 x 9.21 x 16.42 in. (494.03 x 233.93 x 417.07 mm)
Package Contents
What’s in the Box

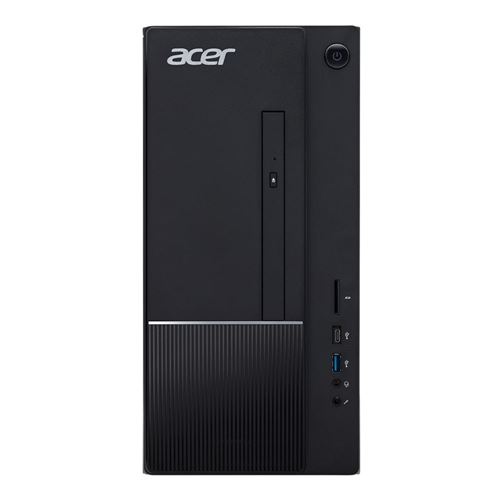

Aspire TC-1775-UR11 Desktop Computer, USB Keyboard, USB Mouse, Power Cord
Preloaded Software
Microsoft Office trial
McAfee Security Trial
McAfee Security Trial
Warranty
Parts
1 Year Limited
Labor
1 Year Limited
